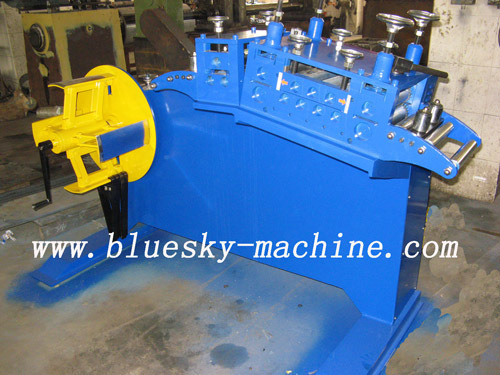

Feature for general decoiler and straightener TMS-200A

Place of Origin:

Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

uncoiler straightener & servo feeder

Feature for general decoiler and straightener

1. Integrated with decoiler and straightener,save space and suitable for board processing.

2. All rollers for straightener are made of bearing steel,all have been quenced and hard chormed plated.

3. Striaghtener use Japanese electromagnetic contact and electric parts,durable. .
4. Stepless variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with straightening, stable feeding for feeder,decoiler and straightener.
5. Leveler inclines appropriately to reduce feeding loop distance
6. Constructed with highly rigid structure and designed with a powerful motorized feeder

Special feature
Change feeding speed

double-shift control motor
transducer control wearable and long service life for straightener

general decoiler & straightener specs:

Model	TMS-150A	TMS-200A	TMS-300A	TMS-400A	TMS-500A
Max coil width(mm)	150	200	300	400	500
Material thickness(mm)	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2
Coil I.D.(mm)	450-530	450-530	450-530	450-530	450-530
Coil O.D.(mm)	1200	1200	1200	1200	1200
Max coil weight(kg)	500	800	1000	1500	2000
Mandrel expansion	manual
Motor(HP)	0.5	1	2	2	3
Straightening speed	0-16m/min
