high frequency longitudinal welded pipe mill manufacturer from China BLUE SKY MACHINE CO., LTD.

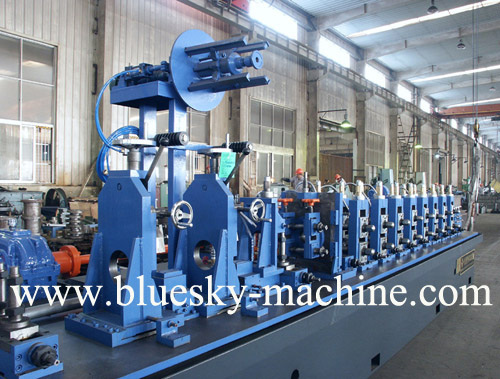

high frequency longitudinal welded pipe mill

Place of Origin:

Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Can automatically move, feed & cut in high-speed and self-lubricate linear guideway.

Applicable pipe Specs:

Equipment Type	Outside Diameter(mm)	Thickness (mm)	Production Speed (m/min)
ZY16	7.6-16	0.3-1.0	0-100
ZY20	10-25	0.3-1.5	0-100
ZY32	13-38	0.6-1.8	0-100
ZY45	16-50	0.7-2.0	0-90
ZY50	20-63.5	0.8-3.0	0-80
ZY60	25-76	1.0-3.2	0-80
ZY76	32-89	1.2-3.75	0-80
ZY89	35-100	1.2-4.5	0-70
ZY125	50-130	2.0-5.0	0-60
ZY165	76-165	2.0-6.0	0-50
ZY219	89-219	3.0-8.0	0-50
ZY273	100-273	4.0-12.0	0-45
ZY325	89-325	3.0-12.7	0-40
ZY406	114-406	4.0-16.0	0-40
ZY508	219-508	4.0-19.1	0-40
ZY610	219-610	4.0-19.1	0-40
ZY660	219-660	4.0-22.0	0-40

Applicable scope:

The welded pipe mill above are mainly used for electric heating tubes, refrigerator pipes, automobile frame pipes, fitness equipment pipes, furniture tubes, pipes for cooler, API pipes, pressure transmission pipes, architectural pipes, structural pipes and so on.
